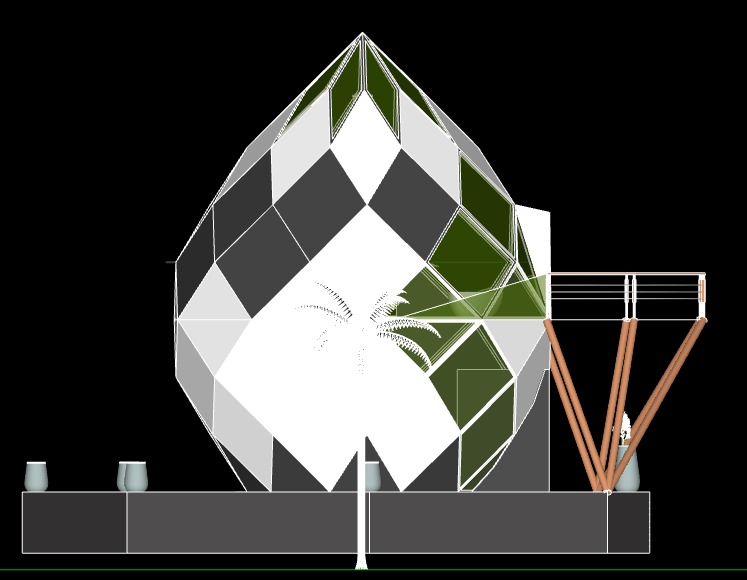

1. Geometric Form — Rhombic Hexecontahedron

The primary geometry is a tapered geodesic form rather than a traditional dome, closely resembling organic seed structures such as pinecones or artichokes.

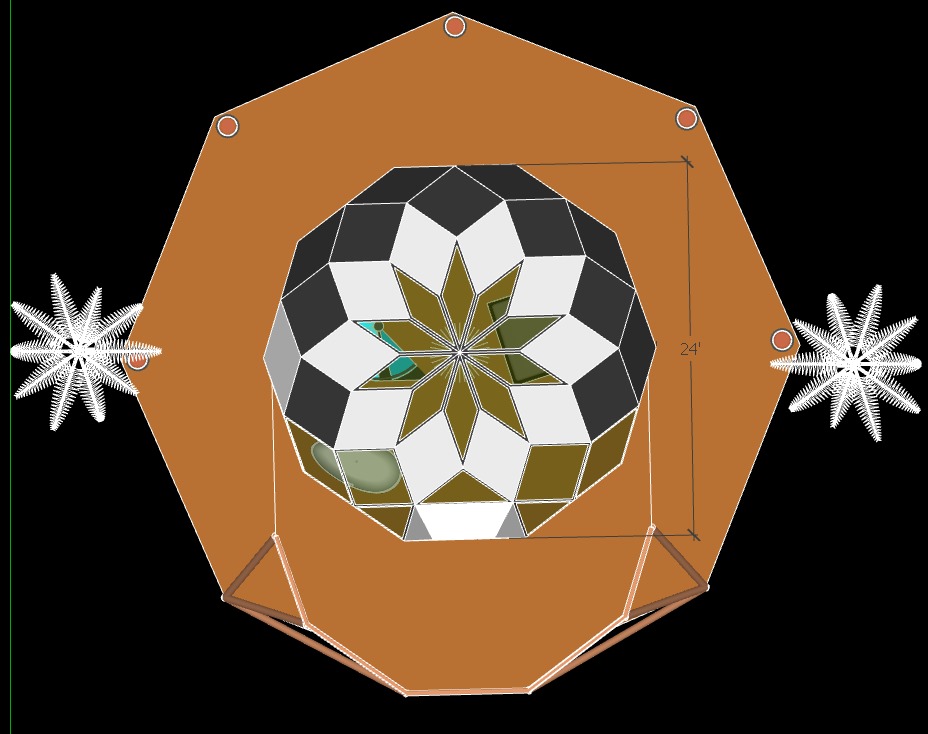

• Facet System: Diamond-shaped (rhombic) panels allow modular assembly of glass and solid elements.

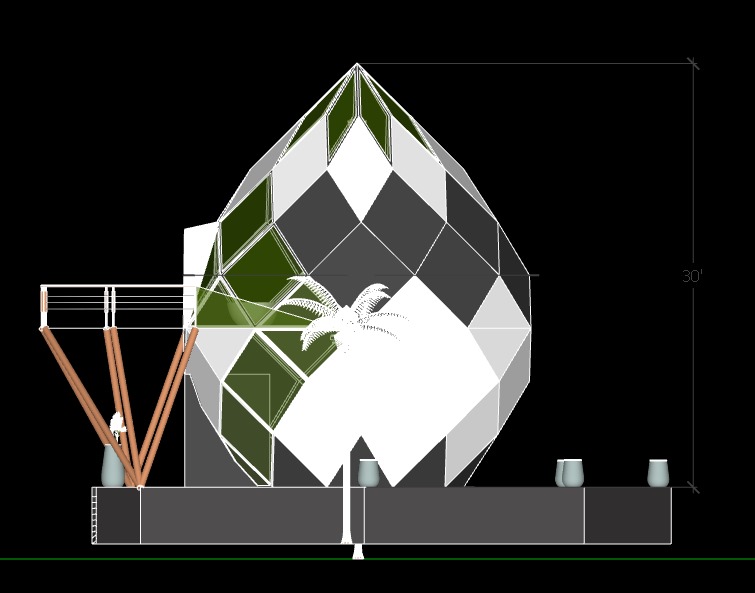

• Vertical Expression: A 30-foot height creates dramatic internal volume over a compact 15-foot base diameter.
• Structural Logic: The tapering form efficiently distributes loads toward the ground.

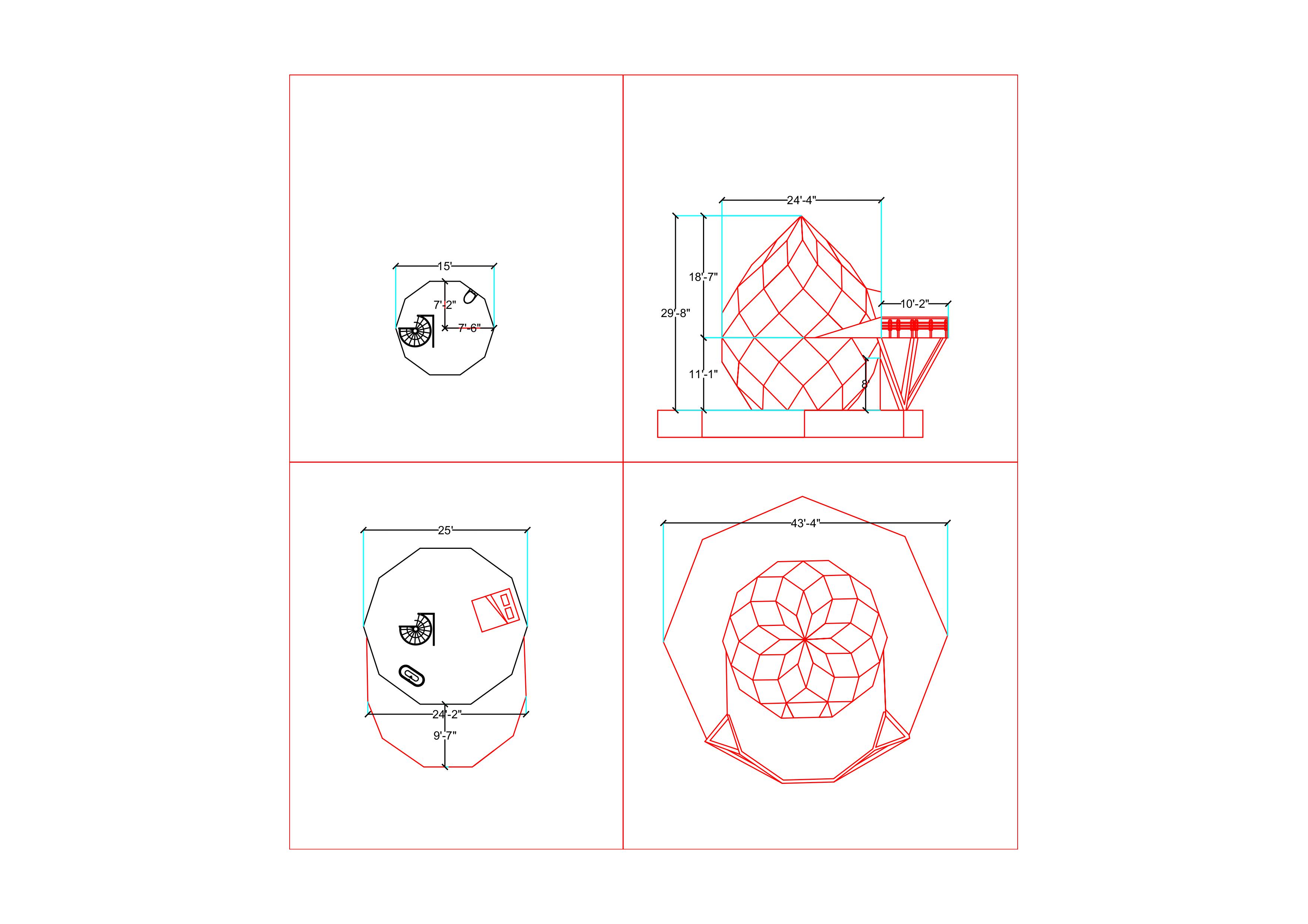

2. Spatial Organization — Vertical Zonation

The design follows a stacked “living pod” strategy, reducing ground footprint while enhancing experiential quality.

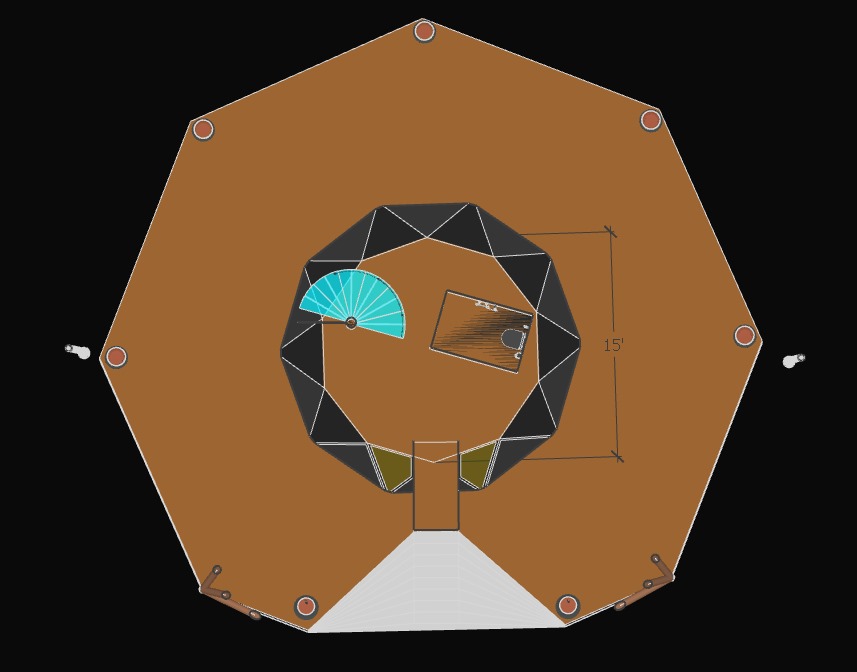

• Ground Floor (Core): A 15-foot-diameter zone containing entry, bathroom, and storage.

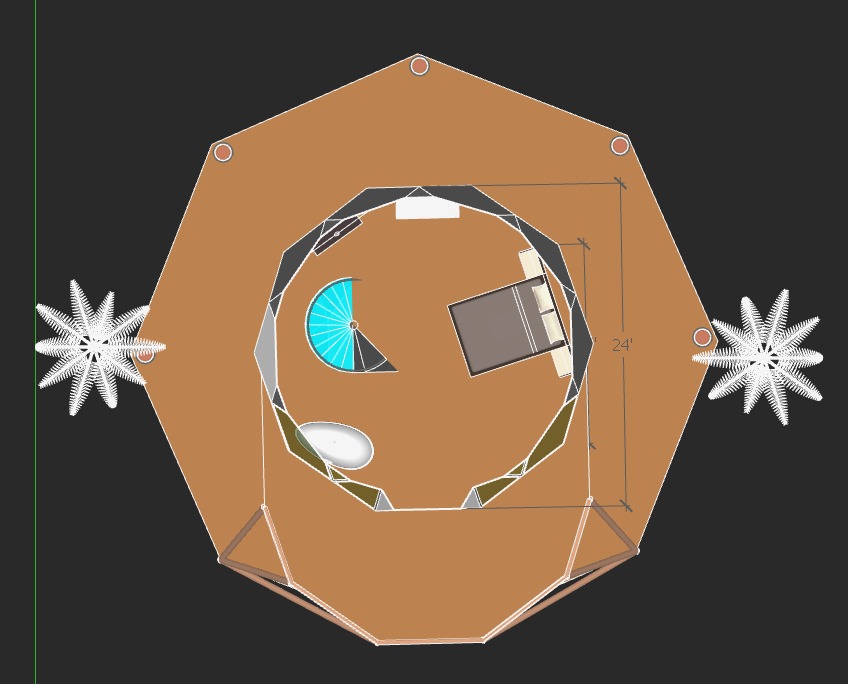

• Upper Floor (Sanctuary): A 24-foot-diameter cantilevered level where the widening geometry creates generous bedroom and lounge space.
• Terrace: An elevated deck expands the living area into the surrounding landscape.

3. Structural Support — Tripod & Stilt System

Zome Onx uses a hybrid support strategy that balances stability with environmental sensitivity.

• Primary Core: Anchored to a compact base for structural stability.
• Angled Stilts: Tree-like supports carry the cantilevered deck, mimicking plant root systems.
• Site Adaptability: Ideal for uneven or ecologically sensitive terrain such as forests or beaches.

4. Environmental Integration & Biophilia

• Material Palette: Forest greens, whites, and wood tones reinforce a Tropical Modernism influence.
• Glass Paneling: Strategically placed for 360-degree views while maintaining bedroom privacy.
• Spiral Staircase: A lightweight, central spiral minimizes footprint and acts as a sculptural element.
• Octagonal Deck: Creates a transitional zone between architecture and nature.

5. Design Analysis Diagramming Strategy

• Massing Diagram: Illustrates the transformation from sphere to stretched teardrop.
• Solar Path Diagram: Shows how rhombic facets respond to sun angles for passive cooling.
• Circulation Diagram: Vertical flow from entry to spiral stair to elevated terrace.
